Selkirk Class A Insulated Elbow Kit

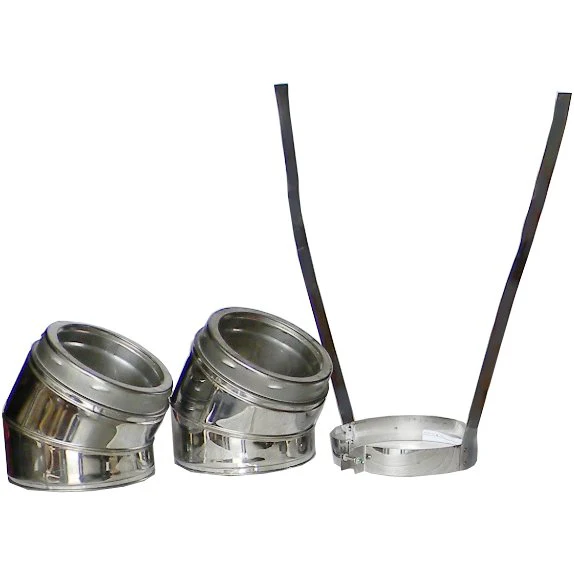

The 15Ā° Insulated Elbows can be used for fixed offsets of 15Ā° slope or in pairs for offsets adjustable from 0Ā° to 30Ā° slope. The 30Ā° Insulated Elbow can be used for fixed offsets of 30Ā° slope. Greater angles are prohibited by ULR Standard. Now includes 2 Elbows, 2 Locking Bands and 1 Interior Re-Support, all in one box!
Note: Not compatible with Selkirk Super-Vent model.
Required: Locking Bands (2 packaged with each elbow kit) are to be used at each joint. Each offset must be re-supported. Elbows rotate 360Ā° to provide the exact orientation required. Insulated Elbows can be used at the same 2" airspace clearance as chimney sections.
15 Degree Offset Chart
| Chimney Length | 6" Dia.: A Offset | 6" Dia.: B Height | 7" Dia.: A Offset | 7" Dia.: B Height | 8" Dia.: A Offset | 8" Dia.: B Height |
|---|---|---|---|---|---|---|
| None | 0.88" | 7.63" | 0.88" | 8.75" | 1.00" | 8.25ā |
| 6" | 2.10" | 12.21" | 2.10" | 12.34" | 2.23" | 12.84" |
| 9" | 2.88" | 15.11" | 2.88" | 16.24" | 3.01" | 15.74" |
| 12" | 3.66" | 18.01" | 3.66" | 19.13" | 3.78" | 18.63" |
| 18" | 5.21" | 23.80" | 5.21" | 24.93" | 5.34" | 24.43" |
| 24" | 6.76" | 29.60" | 6.76" | 30.72" | 6.89" | 30.22" |
| 36" | 9.87" | 41.19" | 9.87" | 42.32" | 9.99" | 41.82" |
| 48" | 12.97" | 52.78" | 12.97" | 53.91" | 13.10" | 53.41" |
30 Degree Offset Chart
| Chimney Length | 6" Dia.: A Offset | 6" Dia.: B Height | 7" Dia.: A Offset | 7" Dia.: B Height | 8" Dia.: A Offset | 8" Dia.: B Height |
|---|---|---|---|---|---|---|
| None | 3.00" | 12.50" | 3.75" | 14.50" | 3.63" | 14.50" |
| 6" | 5.38" | 16.61" | 6.13" | 18.61" | 6.00" | 18.61" |
| 9" | 6.88" | 19.21" | 7.63" | 21.21" | 7.50" | 21.21" |
| 12" | 8.38" | 21.81" | 9.13" | 23.81" | 9.00" | 23.81" |
| 18" | 11.38" | 27.01" | 12.13" | 29.01" | 12.00" | 29.01" |
| 24" | 14.38" | 32.20" | 15.13" | 34.20" | 15.00" | 33.93" |
| 36" | 20.38" | 42.59" | 21.33" | 44.59" | 21.00" | 44.59" |
| 48" | 26.38" | 52.99" | 27.13" | 54.99" | 27.00" | 54.99" |
All dimensions and indicated lengths assume a 1.25" overlap.
Selkirk UT Chimney Pipe & Components Guide
Measurement Chart:
Selkirk Class A Insulated Elbow Kit
|
15 DegreeĀ
|
|||
| Size | 6" | 7" | 8" |
| A | 11.625" | 12.5" | 12.625" |
| B | 3 1/16" | 3 3/16" | 3 5/16" |
|
30 DegreeĀ
|
|||
| Size | 6" | 7" | 8" |
| A | 12.5" | 13.75" | 14.75" |
| B | 6.25" | 7" | 7.375" |
