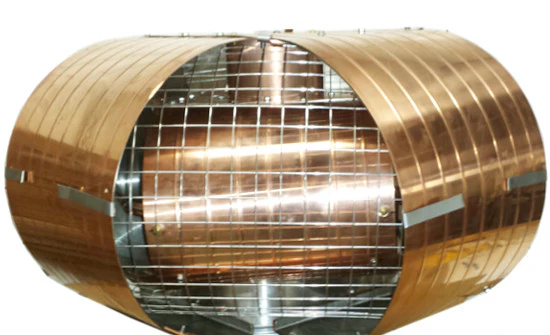

Copper Vacu-Stack Chimney Cap - Air Cooled
Application: Double wall or triple wall air-cooled chimneys. (Collar Included)
The Copper Vacu-Stack is the premier chimney cap (collar included) for solving common, wind-related chimney draft problems. Wind-induced downdraft can cause smoke to enter the living space when: Hills, mountains, tall trees, and or tall buildings are in the vicinity. The Copper Vacu-Stack chimney cap also functions as a conventional chimney cap by protecting the chimney from rain, snow, debris, and animals. Note: These are made custom per order and will add to processing time.
The optional stainless steel 1" mesh screen, used as a bird guard, will never rust and are available for either style of Copper Vacu-Stack caps. The screen will assist against debris and animals from entering the chimney and will help contain sparks.
See how the Vacu-Stack Chimney Cap works. Adapt your Vacu-Stack chimney cap to any standard masonry flue using this adapter.
Sizing:
| Diameter A (Inside Flue Dimension) | Diameter B | Diameter C |
|---|---|---|
| 6" | 16" | 14" |
| 7" | 16" | 15" |
| 8" | 16" | 18" |
| 9" | 16" | 20" |
| 10" | 16" | 21" |
Installation Instructions:
Step 1: Note the Spacers. The three spacers located on the underside of the TDW Copper Air Cooled Vacu-Stack chimney cap maintain ventilation space between the bottom of the Vacu-Stack and top of the chimney. This is essential for uninterrupted air flow through cooling channels in air-cooled chimneys.
Step 2: Fitting the Copper Vacu-Stack inside the flue. Vacu-Stack chimney caps fit inside round metal and masonry flues. Press the pipe end of the Copper Vacu-Stack into the flue until fit is snug.
Step 3: Applying a Watertight Seal. Apply a thin layer of silicone caulking to seal joint between the Copper Vacu-Stack and top of chimney. The chimney silicone is an optional add-on for this product. If you are installing on rectangle or square flues, please visit the masonry adapter page.
